Product Carbon Footprint of a Drone: Components, Materials and System Boundaries
What is a drone made of, and how do its main components work together? A practical introduction to drone architecture, propulsion, batteries, flight control and the engineering choices that influence performance and carbon footprint.
Drones may look simple from the outside, but even a small multirotor drone is a compact engineering system combining aerodynamics, electric propulsion, power electronics, batteries, sensors, computing and wireless communication.
Learning how to build a drone starts with understanding how its main components interact. Decisions concerning weight, materials, propulsion and battery capacity affect flight performance, energy consumption and ultimately the environmental footprint of the aircraft.
This article explains the basic architecture of a typical civilian electric multirotor drone and the engineering role of its main components.

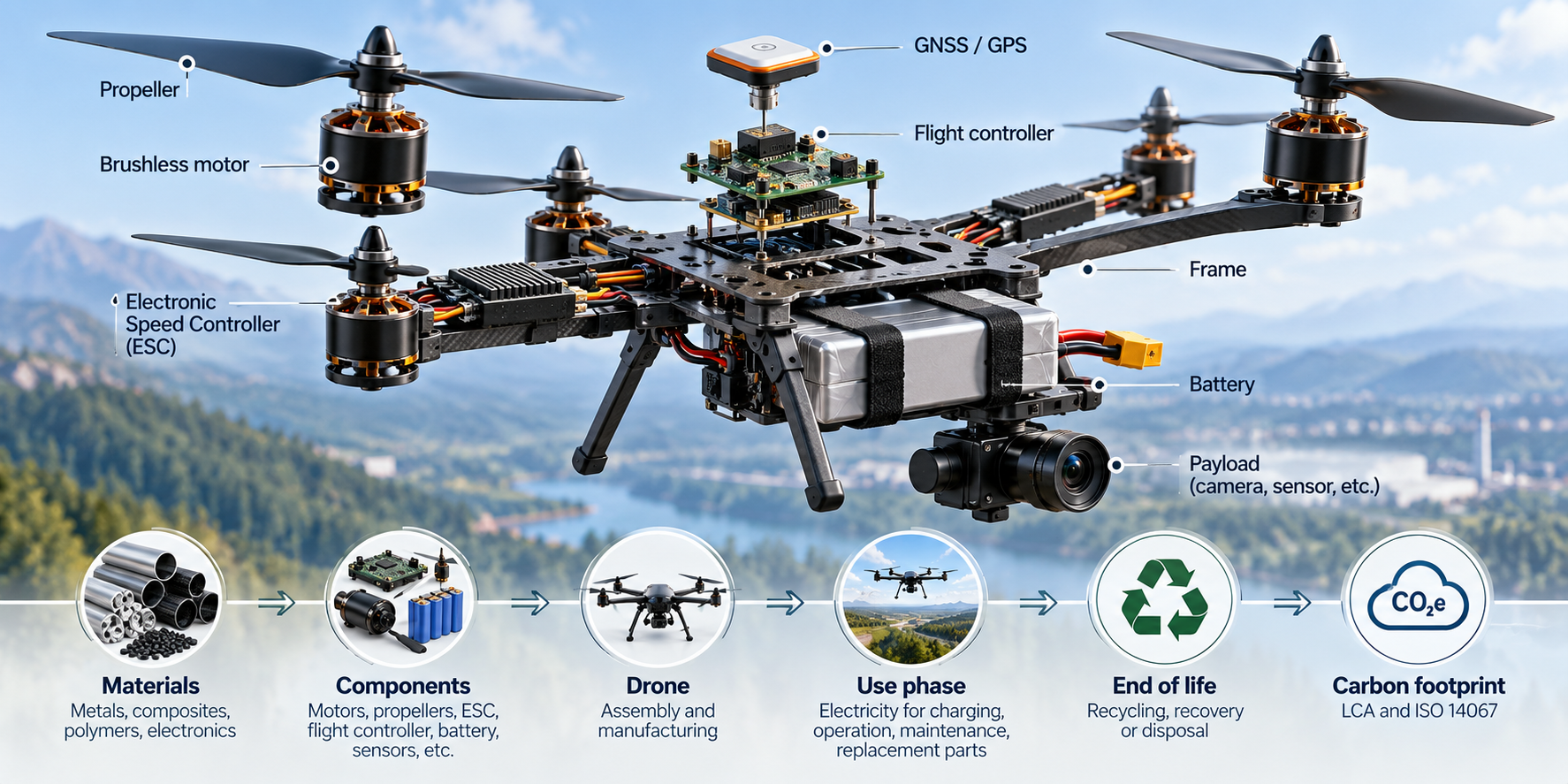

1. The Basic Architecture of a Drone
A typical multirotor drone consists of several interconnected systems:
- frame and structural components;
- electric motors and propellers;
- electronic speed controllers (ESCs);
- flight controller;
- battery and power distribution system;
- navigation and positioning sensors;
- radio communication system;
- optional payload such as a camera or inspection sensor.
In a quadcopter, four motor-propeller assemblies generate the thrust required for flight. Rather than using conventional aerodynamic control surfaces, the aircraft is controlled by continuously changing the rotational speed of individual motors. The flight controller performs these adjustments automatically, often hundreds of times per second.
2. The Frame
The frame is the structural backbone of the drone. It supports the motors, battery, electronics, landing structure and payload while maintaining the geometry required for stable flight.
Common materials include:
Carbon-fibre composites - High stiffness-to-weight ratio makes carbon fibre attractive for high-performance drones.
Aluminium alloys - Easy to manufacture and repair, although generally heavier than composite structures.
Engineering plastics - Frequently used for housings, landing structures and smaller consumer drones.
Glass-fibre composites - A lower-cost alternative for some structural applications.
Frame design is already an important environmental consideration. Reducing mass can reduce propulsion energy during operation, but lightweight materials do not necessarily have the lowest manufacturing footprint. Carbon-fibre composites, for example, may require considerably different manufacturing processes from aluminium or thermoplastics. Consequently, the lightest design is not automatically the design with the lowest life-cycle carbon footprint.
3. Brushless Electric Motors
Most modern multirotor drones use brushless DC (BLDC) motors. Each motor converts electrical energy from the battery into mechanical rotation of a propeller.
Motor selection depends on several parameters, including:
- aircraft mass;
- propeller diameter;
- required thrust;
- operating voltage;
- rotational speed;
- desired flight duration;
- payload.
A drone must generate sufficient total thrust not only to hover but also to climb, manoeuvre and compensate for disturbances such as wind. Increasing motor power can improve performance, but it may also increase mass and electricity consumption. The propulsion system therefore needs to be considered as a whole rather than as a collection of independent components.
4. Propellers
Propellers convert motor torque into aerodynamic thrust. Their diameter, pitch, geometry and rotational speed influence both thrust and efficiency. Larger propellers operating at relatively lower rotational speeds can often provide efficient lift, but they require sufficient frame clearance and appropriately matched motors. A quadcopter normally uses pairs of propellers rotating in opposite directions. This arrangement helps balance reaction torque and allows the aircraft to control its rotation around the vertical axis. Propellers are also consumable components. During a life-cycle assessment, replacement frequency can therefore become relevant, particularly for drones operated intensively in industrial applications.
5. Electronic Speed Controllers (ESCs)
Every brushless motor requires an Electronic Speed Controller. The ESC receives commands from the flight controller and regulates the electrical power supplied to the motor.
In simplified terms, the control chain is: Flight Controller → ESC → Motor → Propeller → Thrust
Four motors normally require four ESC channels, although modern drones may integrate several ESCs into a single electronic module. Efficiency losses in these electronics ultimately become heat and contribute to the total electricity required during operation.
6. The Flight Controller
The flight controller can be considered the central computer of the drone. It receives information from onboard sensors, interprets pilot or autonomous-navigation commands and continuously adjusts motor speeds to maintain the desired aircraft attitude and trajectory.
Typical flight controllers use information from sensors such as:
- accelerometers;
- gyroscopes;
- magnetometers;
- barometric pressure sensors;
- GNSS/GPS receivers.
More advanced systems may also incorporate optical flow sensors, cameras, radar, LiDAR or other navigation technologies. The flight controller combines these signals through sensor-fusion algorithms to estimate the aircraft's position, orientation and movement.
7. Battery and Power System
For most small and medium electric drones, the battery is one of the most important design components. Lithium-based batteries are widely used because of their relatively high energy density.
Battery selection involves several competing requirements:
Capacity - influences potential flight duration.
Voltage - must be compatible with motors and electronic systems.
Maximum discharge capability - must support the high current demanded during take-off and manoeuvring.
Mass - directly affects the energy required to keep the aircraft airborne.
This creates an interesting engineering problem. Installing a larger battery provides more stored energy, but the additional battery mass also requires additional energy to fly. Therefore, doubling battery capacity does not necessarily double flight time. Battery lifetime is also particularly important when assessing the environmental impact of a drone. If several battery packs are consumed during the useful life of the aircraft, their manufacturing impacts may become significant.
8. Navigation and Positioning
A basic drone can be controlled manually, but many modern systems use satellite positioning and onboard sensors for assisted or autonomous operation. A GNSS receiver can provide geographical position, while inertial sensors measure acceleration and rotation. Additional sensors may improve altitude estimation, obstacle detection or positioning where satellite signals are weak. Industrial drones used for surveying, infrastructure inspection or mapping may employ substantially more sophisticated navigation systems.
9. Communication System
A drone normally requires at least one communication link between the aircraft and the operator or ground station.
Depending on the application, communication may carry:
- flight commands;
- telemetry;
- position information;
- system status;
- video;
- sensor data.
The required communication architecture varies substantially between a small recreational aircraft and an industrial inspection platform.
10. Payload
The payload determines what the drone actually does.
Examples include:
- photographic cameras;
- thermal cameras;
- multispectral sensors;
- LiDAR systems;
- surveying equipment;
- environmental sensors;
- infrastructure inspection equipment.
Payload mass has a direct influence on energy consumption. A heavier payload requires greater thrust, which generally increases electrical power demand and may reduce flight duration. This relationship becomes particularly important when comparing the environmental performance of drones used for different tasks.
11. How the Components Work Together
A drone should not be designed by selecting every component independently.
The engineering relationships are circular: Payload → Total Mass → Required Thrust → Motor & Propeller Selection → Power Demand → Battery Size → Total Mass.
Changing one parameter can therefore affect almost every other part of the aircraft. This is why weight optimisation is so important in drone engineering. It also explains why environmental optimisation cannot focus exclusively on individual materials or components. A component with a higher manufacturing carbon footprint might theoretically reduce the total life-cycle footprint if its lower mass produces substantial energy savings during thousands of operating cycles. Only a life-cycle approach can determine whether that trade-off is beneficial.

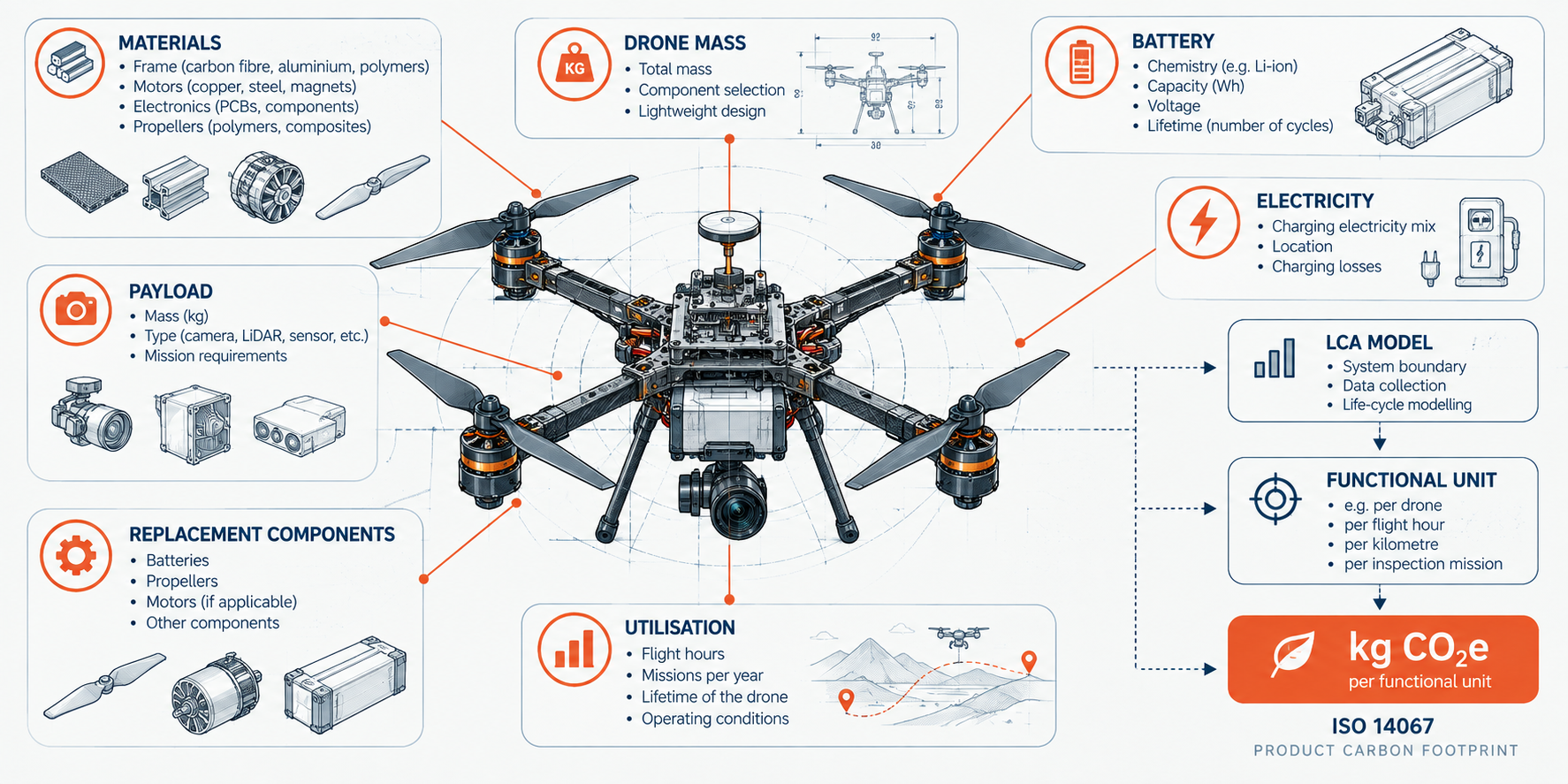

12. Building the Environmental Model of a Drone
Once the technical architecture is understood, the same drone can be viewed from another perspective: as a collection of material and energy flows.
For example:
Frame - carbon fibre, aluminium, polymers
Motors - copper, steel, magnets, aluminium
Electronics - printed circuit boards and electronic components
Battery - lithium-ion cell materials and battery electronics
Propellers - polymers or composites
Manufacturing - electricity and processing
Transport - supply-chain and distribution activities
Operation - electricity used for battery charging
Maintenance - replacement components and batteries
End of life - recycling, recovery or disposal
These flows provide the basis for a Life Cycle Assessment (LCA) and ultimately for calculating the Product Carbon Footprint of the drone.
13. What Is the Carbon Footprint of a Drone?
There is no universal answer.
The result depends on factors including:
- drone design and mass;
- materials;
- battery chemistry and capacity;
- manufacturing processes;
- electricity mix;
- battery lifetime;
- utilisation rate;
- replacement components;
- lifetime flight hours;
- end-of-life assumptions.
Most importantly, the result depends on the functional unit. A carbon footprint expressed per drone manufactured answers a very different question from one expressed per flight hour, kilometre travelled, kilogram transported or inspection performed. This is where drone engineering meets Life Cycle Assessment.
From Drone Engineering to Product Carbon Footprint
Understanding how a drone is constructed is the first step toward understanding its environmental performance. Every engineering decision — from frame material to battery capacity — creates material and energy flows that can be evaluated across the product life cycle.
For organisations manufacturing or operating drones, methodologies such as Life Cycle Assessment (LCA) and ISO 14067 Product Carbon Footprint can provide a structured approach for quantifying these impacts.
In the next PCF-X article, we will examine the question in detail:
What Is the Carbon Footprint of a Drone?
We will define the system boundary, possible functional units and the main life-cycle stages that should be considered when developing a carbon footprint model for an unmanned aircraft.
